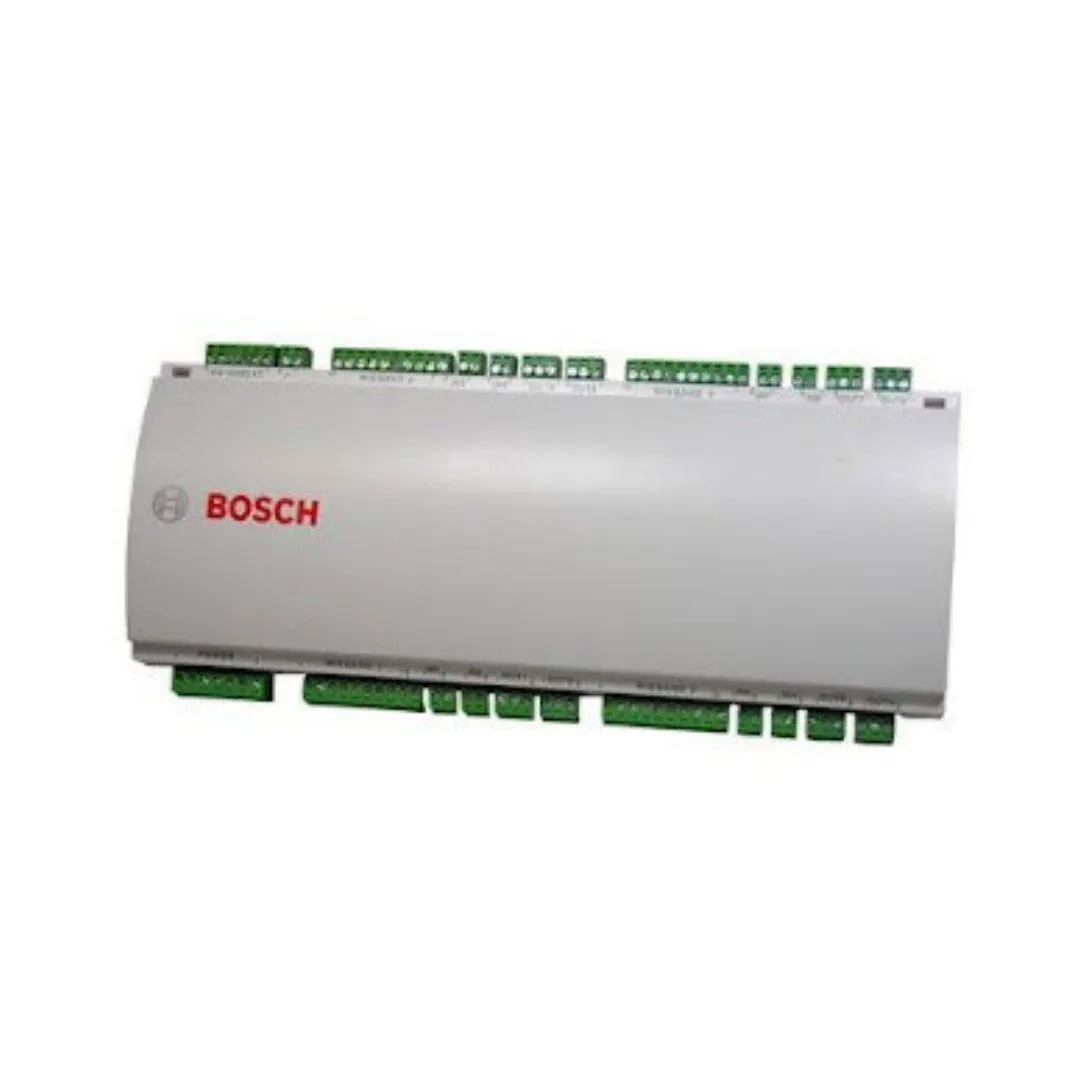

Wiegand Extension Board | API-AMC2-2WE

The extension module AMC2 4W-EXT is equipped with four Wiegand type reader-interfaces plus eight inputs and eight outputs.

Hence with the AMC2 4W-EXT it is possible to double the number of readers on an AMC2 4W from 4 to 8.

.RS485 connection to the AMC2 4W controller

.4 Wiegand reader interfaces

.8 analog inputs

.8 relais outputs (wet or dry)

. Status of inputs and outputs shows on AMC2 4W LCD display

.​Transfer rate to EXT interface (RS485): 9,6 kBit/sec
