Panduit Copper Cable — Enterprise-Grade Structured Cabling for Egypt & EMEA Projects

Panduit is a globally recognized manufacturer of network infrastructure solutions, offering a comprehensive range of copper bulk cables engineered for high-performance enterprise, data center, and commercial building deployments. Panduit copper cables are available in EMEA/Europe & Africa regional variants with LSZH jackets and CPR fire safety ratings — making them the ideal specification for structured cabling projects in Egypt and across the Middle East and Africa region.

All Panduit copper cables are components of complete end-to-end cabling systems, backed by guaranteed channel performance certification and compatibility with Panduit jack modules, patch panels, and patch cords.

Cable Families Available in EMEA & Egypt

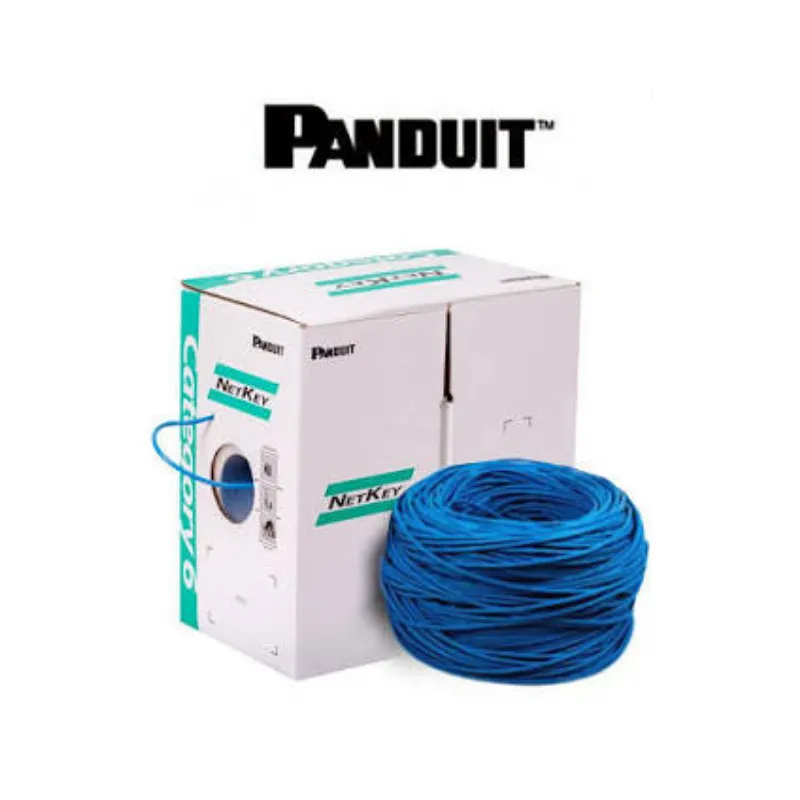

NetKey® NK6™ — Category 6 U/UTP Copper Cable

The NetKey® NK6™ is Panduit’s enterprise Cat 6 unshielded twisted pair cable, engineered to meet and exceed ANSI/TIA-568 Category 6 and ISO/IEC 11801 Class E channel performance requirements up to 250 MHz. Designed as the horizontal cable backbone for Gigabit Ethernet installations in offices, education facilities, government buildings, and commercial premises.

Key specifications:

Conductors: 24 AWG solid bare copper, HDPE insulation
Cable type: U/UTP (4 pairs)
Jacket: LSZH — IEC 60332-1, IEC 60332-3-22, EuroClass Dca-s2,d2,a1 (EN 50575 CPR compliant)
Standards: ANSI/TIA-568, ISO/IEC 11801 Class E
PoE support: IEEE 802.3af, IEEE 802.3at
Packaging: 305m easy-payout carton — clean, manageable deployment on-site
Part number reference: NUZ6C04BU-KE (Blue, LSZH, 305m)

NetKey® NK6A™ — Category 6A U/UTP Copper Cable with MaTriX Technology

Panduit’s premium unshielded Cat 6A cable, featuring MaTriX Technology™ — an individual foil barrier tape around each pair that suppresses alien crosstalk (PSANEXT/PSAACRF) without requiring a full cable shield. This innovative design delivers shielded-class alien crosstalk suppression in a U/UTP form factor, simplifying installation and grounding requirements.

Key specifications:

Conductors: 23 AWG solid bare copper, HDPE insulation
Cable type: U/UTP with individual pair foil barrier (MaTriX Technology™)
Cable diameter: 7.2mm nominal — compact for high-density pathways
Jacket: LSZH — IEC 60332-1, IEC 60754, IEC 61034 (Dca variant) / EuroClass Cca-s1a,d1,a1 (Cca variant)
Standards: ISO/IEC 11801 Class EA, ANSI/TIA-568.2-D Category 6A
Performance: Certified channel in 4-connector configuration up to 100 meters, swept to 500 MHz
Ethernet support: 10GBASE-T (IEEE 802.3an)
PoE support: IEEE 802.3af, 802.3at, 802.3bt (up to 100W PoE)
Temperature: 0°C to 50°C installation / -20°C to 60°C operation
Installation tension: 110N maximum
Packaging: 305m reel or 500m reel
Part number reference: NUL6X04WH-FEG (White, LSZH Dca, 305m) / NUY6X04WH-HEG (White, LSZH Cca, 305m)

TX6A™ Shielded — Category 6A F/UTP Copper Cable

Panduit’s foil-shielded Cat 6A cable for environments requiring maximum signal isolation against electromagnetic interference (EMI). The TX6A™ Shielded system features an overall metallic foil shield with an integrated drain wire and an internal pair divider for exceptional signal separation across the full 500 MHz bandwidth. The preferred specification for data centers, hospitals, industrial environments, and government buildings where EMI immunity is critical.

Key specifications:

Conductors: 23 AWG solid bare copper, PE insulation
Cable type: F/UTP (foil-shielded overall)
Internal drain wire for efficient grounding
Cable diameter: 7.3mm nominal (LSZH variant)
Jacket: LSZH — IEC 60332-3-22, IEC 60754-1/2, IEC 61034-2, EuroClass Dca-s2,d2,a1 (EN 50575 CPR)
Standards: ISO/IEC 11801 Class EA, ANSI/TIA-568.2-D Category 6A
Performance: Certified channel up to 100 meters, 500 MHz swept frequency
Ethernet support: 10GBASE-T (IEEE 802.3an)
PoE support: IEEE 802.3af, 802.3at, 802.3bt (up to 100W PoE)
Temperature: -20°C to 75°C installation and operation
Minimum bend radius: 8× cable diameter during installation / 4× during operation
Packaging: 305m reel (ISTA 1A tested)
Part number reference: PFL6X04WH-CEG (White, LSZH, 305m) / PFL6X04BU-CEG (Blue, LSZH, 305m)

TX6A™ Vari-MaTriX HD — World’s Smallest Cat 6A U/UTP Cable

Panduit’s next-generation high-density Cat 6A cable engineered with Vari-MaTriX Technology™ — the world’s smallest 23 AWG Cat 6A UTP cable at just 6.2mm outer diameter. Designed for maximum cable density in conduits and cable trays, enabling up to 25% more cable runs within existing pathways. Ideal for retrofit projects and high-density data centers where space is at a premium. Supports 1–10 GbE Ethernet with full PoE compliance, and uses LSZH jacket material for fire safety in enclosed spaces.

Technical Highlights Across the Full Range

Feature	NetKey® NK6™ Cat 6	NetKey® NK6A™ Cat 6A UTP	TX6A™ Cat 6A F/UTP Shielded
Conductor	24 AWG solid copper	23 AWG solid copper	23 AWG solid copper
Cable type	U/UTP	U/UTP + pair foil	F/UTP (overall foil)
Max speed	1 Gbps (1000BASE-T)	10 Gbps (10GBASE-T)	10 Gbps (10GBASE-T)
Bandwidth	250 MHz	500 MHz	500 MHz
PoE	802.3af/at	802.3af/at/bt (100W)	802.3af/at/bt (100W)
Jacket (EMEA)	LSZH Dca	LSZH Dca or Cca	LSZH Dca
CPR rating	EN 50575 Dca	EN 50575 Dca / Cca	EN 50575 Dca
Standards	TIA-568 / ISO Class E	TIA-568.2-D / ISO Class EA	TIA-568.2-D / ISO Class EA
Channel length	100m	100m	100m
Packaging	305m carton	305m / 500m reel	305m reel

Key Technical Advantages

MaTriX Technology™ on NK6A™: individual pair foil barriers deliver shielded-class PSANEXT suppression without a full cable shield — easier to install, no grounding required
Vari-MaTriX HD Technology: world’s smallest Cat 6A UTP cable at 6.2mm, enabling 25% more density in existing pathways
Full PoE compliance across the range including IEEE 802.3bt (Type 4 / 100W) — future-proof for IP cameras, access points, LED drivers, and IoT edge devices
LSZH jacketing standard across all EMEA variants — low smoke, zero halogen, critical for enclosed public spaces and tunnels
CPR EuroClass fire ratings (Dca and Cca) — meeting EN 50575 building regulation requirements for Egypt projects specifying international fire safety codes
Descending cable length markings printed on jacket — reduces installation time and cable waste on-site
305m easy-payout carton packaging — clean, tangle-free deployment with no reel required for standard runs
ISTA 1A tested packaging — verified for safe transport and storage

Typical Applications in Egypt & MENA

Panduit copper cables are specified by leading structured cabling contractors for:

Corporate offices and headquarters buildings
Government ministries and administrative buildings
Universities, technical institutes, and schools
Hospitals, medical centers, and healthcare facilities
Hotels and hospitality projects
Industrial facilities and manufacturing plants
Data centers and server rooms
Smart building and BMS integration projects
High-density PoE deployments: IP cameras, Wi-Fi access points, VoIP, IoT devices

Why Panduit for Egypt & EMEA?

Panduit operates a dedicated Europe & Africa (EMEA) product portal with region-specific cable variants certified to European building and fire safety standards. All EMEA cables carry CPR EuroClass ratings and LSZH jackets as standard — meeting the requirements of internationally specified projects across Egypt, the GCC, and Africa. Panduit copper cables are backed by the Panduit NetKey® and TX6A™ Cabling System warranties when installed as part of a complete end-to-end Panduit system.

For project specifications, technical support, and product availability in Egypt — contact Infratech Egypt, your trusted low-current and network infrastructure partner.
